Disc harrow blade replacement

The disc blade is a fundamental tillage component for disc harrows, disc ploughs, and vertical tillage tools. These concave steel discs are mounted on a common axle, or “gang,” to cut through crop residue, break up soil clods, and incorporate organic matter into the seedbed. The blade’s design and condition are critical for achieving optimal soil tilth, reducing draft load, and maximizing fuel efficiency.

Disc blades are defined by several key specifications: diameter (e.g., 20″, 22″, 24″), thickness (e.g., 4.5mm, 6mm), concavity (depth of the dish), and center hole type (e.g., square, round, clover leaf). They are available in two primary edge configurations:

• Smooth/Plain Blades: Ideal for secondary tillage and finishing work in soil that is free of heavy debris. They provide a smooth, level finish.

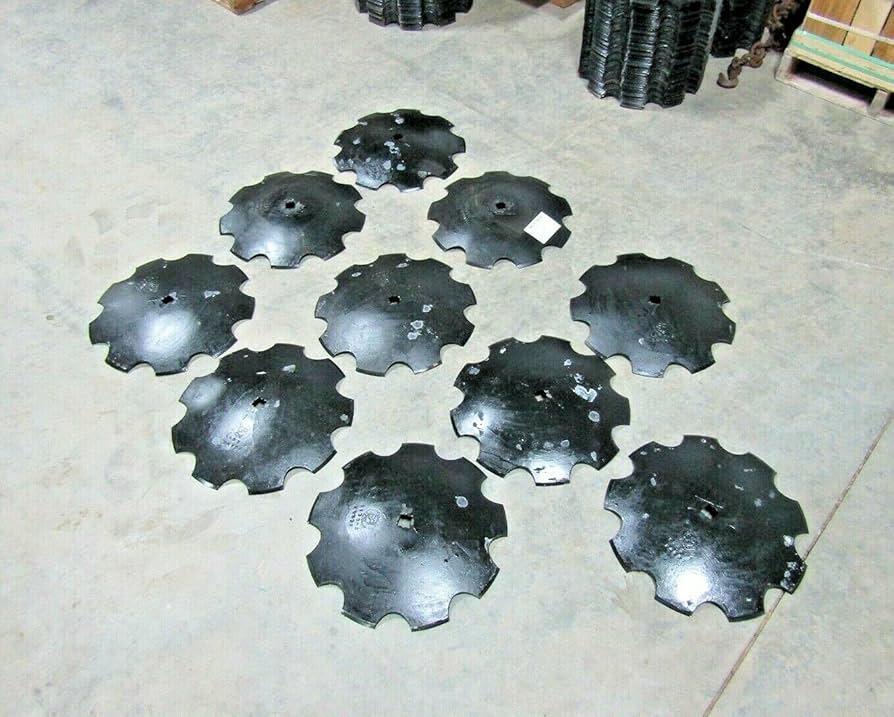

• Notched Blades: Feature a scalloped edge for aggressive cutting action, making them best suited for primary tillage, heavy residue, and hard, compacted soils.

Manufactured from high-strength materials, disc blades are available in several steel grades:

• 1070/1080 Carbon Steel: A common, cost-effective option with good wear resistance.

• 65Mn Steel: A popular manganese steel that offers a balance of hardness (38-48 HRC) and toughness, suitable for most farming conditions.

• Boron Steel: A premium material with excellent wear resistance and impact toughness for rocky and highly abrasive soils.

Quality disc blades are heat-treated for maximum hardness and strength, ensuring they resist bending and breakage. They are available as direct OEM replacements or high-quality aftermarket units for all major tillage brands, including John Deere, Case IH, New Holland, Land Pride, and Bush Hog. For tillage efficiency and long implement life, a sharp, properly matched disc blade is essential.
